MID IC CUSHION
CUSHION TIRE
- 4,000-6,500 lbs. Lifting Capacity
- System of Active Stability (SAS)
- CGN Power Available
- Length to forkface 91.2 - 98.6 in
- Overhead Guard Height 80.7 inM
- Overall Width 41.9 - 43.7 in

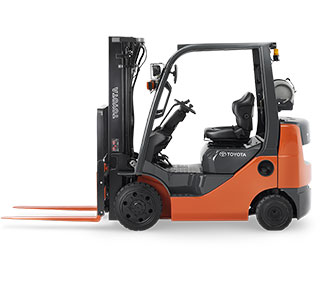

Toyota's Mid IC Cushion Forklift is one of the most popular forklifts in North America. Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize Toyota's Mid IC Cushion for its extreme versatility. Powerful enough to lift up to 6,500 lbs. yet capable of navigating in 12 foot aisles, the Mid IC Cushion forklift is a trusted multi-purpose forklift.
LIFT TRUCKS
ERGONOMICS
- Easy to use operator controls
- Large ergonomically designed step for easy on/off
- 11.8" diameter two-spoke steering wheel
- Heavy-Duty non-slip rubber floor mat
- 12" long dual operator assist grips
- 4-Way Addjustable full-suspension Toyota Genuine Seat
PERFORMANCE
- 48 Horsepower
- 20% Thicker Side panels
- 100% Committed to your business
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core IC Cushion Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Core IC Cushion Forklift can be an asset for your company for years to come.
EASE OF SERVICE
- Easy access no-tools floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Externally mounted hydraulic oil return filter
- Dash mounted brake fluid level check
SAFETY
- System of Active StabilityTM (SAS)
- Active Mast Control (AMC)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Asbestos free components
DURABILITY
- Left & Right side entry/exit
- Dual wire braided hosing
- Large ergonomically designed step for easy on/off
- Swing out LPG tank bracket
- Welded steel axle
- Rear assist grip with horn (option)
OPTIONS
- T-Matics Vehicle Management System Allows the operator to view all pertinent information that relates to the truck and its functions.
- Toyota Integrated Sideshifting Scale The system allows operators to easily and quickly capture Legal-for-Trade weight data en route, without extra steps.
- Cascade Sideshifter w/Bronze Upper Bushing Standard Cascade sideshifter is supplied with upper and lower bushings made of bronze.
- Mini-Lever Controls with Ergoshift Features a three-way adjustable armrest to enhance operator comfort and productivity. Mini-Lever Controls with Ergoshift
- LPG Swing Down Bracket Swings the bracket to 65 degrees down from the horizontal position.
- Steering Wheel Knob Steering wheel is equipped with an assist knob. Allows convenient operator maneuvering of forklift.
- EZ Pedal Allows operators to quickly and easily change travel direction without removing hands from steering wheel or hydraulic controls.
- CNG Powered Cleanest fuel type offered for the IC forklift line.
SPECIFICATION CHART
| Model | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
| 8FGCU20 | 4,000 | 10.6 | 124 | 36 | 92.8 |
| 8FGCU25 | 5,000 | 10.6 | 124 | 31 | 94.3 |
| 8FGCU30 | 6,000 | 10.6 | 102 | 25 | 97.5 |
| 8FGCU32 | 6,500 | 10.6 | 102 | 25 | 98.8 |
* Based on 24" load center.
** Add load length and clearance.
