HIGH-CAPACITY LARGE CUSHION
CUSHION TIRE
- 25,000 - 100,000 lbs Lifting Capacity
- High-Capacity Cooling System
- 5.7 L V8 Engine
- Dana 3-Speed Power Shift Transmission
- Heavy Duty Planetary Drive Axle
- Load-sensing Hydraulic System
- Engine Protection System
- Length to Forkface: 136-184 in.
- Overhead Guard Height: 103.6 - 118.8 in.
- Overall Width: 62 - 85.5 in.

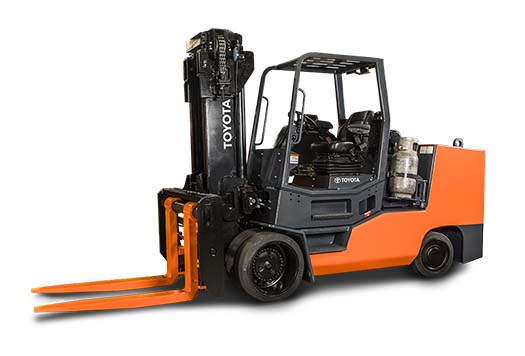

They said all the heavy lifting was happening outside. But Toyota knows that sometimes hauling high capacity loads is an inside job. The Toyota High-Capacity Large IC Cushion Forklift is an indoor mammoth of a machine. Ideal for automotive environments and moving steel inside manufacturing facilities, it gives you the ability to lift up to 100,000 lbs. of the meanest metal around. And with one of the leading engines in its class, the Toyota High-Capacity Large Cushion Forklift is as dependable as it is strong.
LIFT TRUCKS
ERGONOMICS
- Mast mounted LED Headlights (2)
- LED rear combination lights (2)
- Finger-tip hydraulic controls
- Tilt steering column
- Left-hand shift lever
- Long operator assist grips
- Vinyl adjustable semi-suspension seat
- Hand-actuated disc-type parking brake
- Low-height non-skid steps
- Padded floor mat
PERFORMANCE
- 9.7 - 10.3 pmh Travel Speed
- PSI 5.7L V8 engine (LP)
- Dana model 32000 transmission
- 3FWD/3REV speed automatic
- True inching system
- Integral cooling pump (dedicated)
- Remote mounted filter
- 12 plate modulation
- 2-function hydraulic control valve (lift/tilt)
- Independent brake & inching pedals
- Full hydraulic power steering
- Warning light for parking brake (Release)
- Lift and lashing points
- Illimunated digital instrument display
- Hydraulic filter plugged warning
- Air filter plugged warning
- Transmission filter plugged warning
- Check engine light
- Low fuel level indicator
- Parking brake indicator
- High engine temperature indicator
- Low engine pressure indicator
- High transmission temperature indicator
- Engine over-speed indicator
- Low battery indicator
- Service meter warning
EASE OF SERVICE
- Easy-access service panels
- Hydraulic pump, hoses, tubes, and wiring harness are accessible and easy to inspect
- Hydraulic multi-gauge
- Chrome-plated rods (lift, tilt and steer cylinders) for easy seal replacement
- Parker pumps, valves and seals
- O-ring face seal fittings on the entire hydraulic system
- Electrical box located inside the cab
- Color coded wires enclosed with splittubing wire-loom wrap
- Anti-restart ignition switch
- Fully sealed headlights and auxiliary lights
- Low chassis side plate allows easy access to the drive train
- Swing-out LP tank brackets (2)
- Hinged side doors provide excellent access to engine compartment
SAFETY
- Electrical horn
- Asbestos free components
- Neutral safety switch
- Integrated overhead guard
- Operator Restraint System seat
- Orange forks
- Operator Presence Sensing System (OPSS)
DURABILITY
- Large drum-type brakes
- Heavy duty planetary drive axle rated for durability in high-capacity applications
- Rigidly constructed, welded frame
- Built-in engine protection system
- High-Capacity cooling system
- Bolted open core radiator
- Heavy-duty mast rails
- Lift cylinders secured behind mast rails
- Lubricated and sealed main rollers
- Impact resistant main/side thrust rollers
- Greaseable mast pivots
- Heavy-duty isolated anti-vibration bolt-in drive line mounts
- Mast pivots constructed with wearresistant steel bushings and hardened steel pins
- 2 stage wide visible mast (V)
- 2 stage mast w/ free lift (FV) (45K to 55K models)
- Dual action bolt-on steer cylinder protected by heavy steel support beams
- Sealed tapered roller bearings
- Heavy steel frame cross supports
- Two-part rust-inhibiting polyurethane base coat and two-part polyurethane top coat for corrosion protection
- Rubber-mounted cab, isolated from the frame to reduce noise and vibration
- High-visibility carriage with integral side thrust rollers
- High-impact greaseable composite trunnions
- Hook-type forks
OPTIONS
CAB/CONTROLS
- Air Conditioning
- Heater
- Cab w/ Soft Doors
- Cab w/ Steel Doors
- Front Wiper/Washer
- Rear Wiper/Washer
- Blackseatbelt with Switch
- Orange Seatbelt
- Orange Seatbelt with Switch
- Cloth Semi-Suspension Seat
- Air Ride Seat
- Steering Wheel w/ Knob
- Lexan, Front
- Lexan, Top
- Lexan, Rear
- Glass, Front
- Glass, Top
- Glass, Rear
- Operator Compartment Fan
- Mechanical Controls
- Hydraulic Controls
CAB RISER
- 13" Riser, LH Seat
- 13" Riser, Center Seat
- 13" Riser, LH Seat with Cab Tilt
- 13" Riser, Center Seat with Cab Tilt
- 20" Riser, LH Seat
- 20" Riser, Center Seat
- 20" Riser, LH Seat with Cab Tilt
- 20" Riser, Center Seat with Cab Tilt
INDICATORS & MISC.
- Rear Pillar Assist Grip w/ Horn Button
- Forward Camera System Visibility Aid
- Rear Camera System Visibility Aid
- Dual Camera System Visibility Aid
- Overload Warning System
- 5 lb. Fire Extinguisher
- Back-up alarm
LIGHTS/ALARMS
- Amber Strobe Light
- Blue Strobe Light
- Red Strobe Light
- Clear Strobe Light
- Amber Strobe Light (Additional)
- Blue Strobe Light (Additional)
- Red Strobe Light (Additional)
- Clear Strobe Light (Additional)
- Strobe Light Guard
- Forward Facing Blue Light*
- Rear Facing Blue Light*
- Forward & Rear Facing Blue Light*
- Forward Facing Red Light*
- Rear Facing Red Light*
- Forward & Rear Facing Red Light*
- Side Mount 'Red Zone' Pedestrian Light
- Turn Signal Light Kit
- Single Forward Facing LED Worklight (Additional)
- Single Rear Facing LED Worklight
- Extra Work Lights
- LED Forward Facing (pair)
- Extra Work Lights
- LED Rearward Facing (pair)
HYDRAULIC
- Low Nitrogen Warning System
- Steer/Brake Accumulator
- Lift Accumulator
- Tilt Accumulator
SPECIFICATION CHART
| Model | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
| THDC2500-24 | 25,000 | 9.7 | 61 | 73.7% | 167 |
| THDC2500-30 | 25,000 | 9.7 | 61 | 69.9% | 167.1 |
| THDC3000-24 | 30,000 | 9.7 | 61 | 67.1% | 167 |
| THDC3000-30 | 30,000 | 9.7 | 61 | 64.7% | 174 |
| THDC3000-36 | 30,000 | 9.7 | 58 | 61.7% | 174.3 |
| THDC3500-24 | 35,000 | 9.7 | 58 | 62.9% | 184.3 |
| THDC4000-30 | 40,000 | 9.7 | 41 | 49.8% | 186 |
| THDC4000-36 | 40,000 | 9.7 | 41 | 47.4% | 186 |
| THDC4500-30 | 45,000 | 9.7 | 41 | 46.6% | 217.5 |
| THDC4500-36 | 45,000 | 10.3 | 20 | 35.3% | 217 |
| THDC5000-30 | 50,000 | 10.3 | 20 | 34.7% | 217.5 |
| THDC5000-36 | 50,000 | 10.3 | 20 | 33.3% | 217.5 |
| THDC5500-36 | 55,000 | 10.3 | 20 | 31.5% | 217.5 |
* Based on 24" load center.
** Add load length and clearance.
