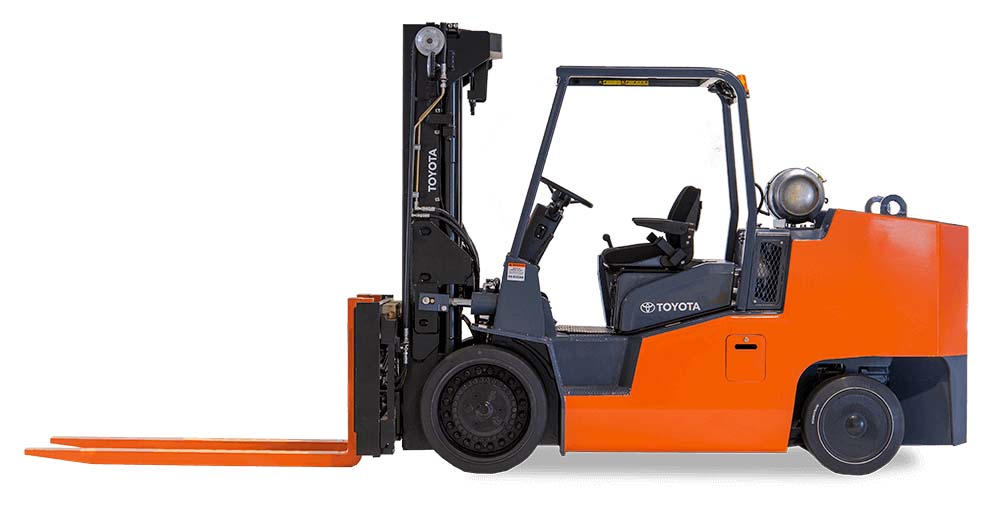

HIGH-CAPACITY CUSHION
CUSHION TIRE
- 18,000 - 22,000 lbs Lifting Capacity
- Standard 4.3L V6 LP Engine
- Dana 3-Speed Power Shift Transmission
- Load-sensing Hydraulic System
- Engine Protection System
- Length to Forkface: 123.8 - 135.7 in.
- Overhead Guard Height: 88.9 in.
- Overall Width: 60.7 in.
The High-Capacity IC Cushion Forklift is a home run when it comes to versatility in the warehouse or manufacturing facility. Need to lift large pallets full of heavy components? The High-Capacity Cushion has you covered with its ability to lift up to 22,000 lbs. you'll have those pallets of metal moving in no time. Have a paper plant with larger than normal rolls? The High-Capacity Cushion can come with a roll clamp to make those operations a cinch.
LIFT TRUCKS
ERGONOMICS
- Mast mounted LED Headlights (2)
- LED rear combination lights (2)
- Hood-mounted hydraulic controls
- Tilt steering column
- 2.75 turn lock-to-lock steering wheel
- Left-hand shift lever
- Hood-mounted clipboard
- Vinyl adjustable semi-suspension seat
- Hand actuated, disc-type parking brake
- Low-height non-skid steps
- Cup holder
PERFORMANCE
- 14.3 mph Travel Speed
- PSI 4.3L V6 engine (LP)
- Dana model 12000 transmission
- 3FWD/3REV speed automatic
- 2-function hydraulic control valve (lift/tilt)
- Full hydraulic power steering
- Independent brake & declutch pedals
- Load-sensing “on-demand” hydraulic system
- Lift and lashing points
- Engine management system
- Regulates fuel delivery
- Governs speed
- Controls ignition
- Regulates fuel delivery
- Overheat protection
- Maintains RPM during hydraulic functions
- lluminated digital instrument display
- Fuel gauge
- Engine pressure gauge
- Transmission temperature
- Battery charge warning light
- Service meter warning
- Engine temperature gauge
EASE OF SERVICE
- Easy-access filters
- Hydraulic multi-gauge
- Easy-access service panels (left, right, and floorboard)
- Flip-up hood
- Wires enclosed in split tube wire loom wrap
- Sealed weatherpack connectors
- Fully sealed headlights and auxiliary lights
- Low chassis side plate allows easy access to the drive train
SAFETY
- Electrical horn
- Asbestos free components
- Neutral safety switch
- Bolt-on overhead guard
- Operator Restraint System seat
- Orange forks
- Spring-applied/hydraulic release parking brake
- Operator Presence Sensing System (OPSS)
DURABILITY
- Large drum-type brakes
- Heavy duty planetary drive axle rated for durability in high-capacity applications
- Rigidly constructed, welded frame
- Built-in engine protection system
- Heavy duty extruded and rolled mast rails
- Class V ITA carriage with six roller support and side thrust rollers
- 12 volt electrical system
- 2 stage wide visible mast (V)
- Hook-type forks
OPTIONS
CAB/CONTROLS
- Air Conditioning
- Heater
- Cab w/ Steel Doors
- Front Wiper/Washer
- Rear Wiper/Washer
- Black Seatbelt with Switch
- Orange Seatbelt
- Orange Seatbelt with Switch
- Cloth Semi-Suspension Seat
- Air Ride Seat
- Steering Wheel w/ Knob
- Lexan, Front
- Lexan, Top
- Lexan, Rear
- Glass, Front
- Glass, Top
- Glass, Rear
- Operator Compartment Fan
- Electrical Controls
- Hydraulic Controls
LIGHTS/ALARMS
- Amber Strobe Light
- Blue Strobe Light
- Red Strobe Light
- Clear Strobe Light
- Amber Strobe Light (Additional)
- Blue Strobe Light (Additional)
- Red Strobe Light (Additional)
- Clear Strobe Light (Additional)
- Strobe Light Guard
- Forward Facing Blue Light*
- Rear Facing Blue Light*
- Forward & Rear Facing Blue Light*
- Forward Facing Red Light*
- Rear Facing Red Light*
- Forward & Rear Facing Red Light*
- Side Mount 'Red Zone' Pedestrian Light
- Turn Signal Light Kit
- Single Forward Facing LED Worklight (Additional)
- Single Rear Facing LED Worklight
- Extra Work Lights
- LED Forward Facing (pair)
- Extra Work Lights
- LED Rearward Facing (pair)
HYDRAULIC
- Low Nitrogen Warning System
- Steer/Brake Accumulator
- Lift Accumulator
- Tilt Accumulator
INDICATORS & MISC.
- Swing Out LP Tank Bracket
- Rear Pillar Assist Grip w/ Horn Button
- Forward Camera System Visibility Aid
- Rear Camera System Visibility Aid
- Dual Camera System Visibility Aid
- Overload Warning System
- 5 lb. Fire Extinguisher
- Back-up Alarm
SPECIFICATION CHART
| Model | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
| THDC1800-24 | 18,000 | 14.3 | 50 | 30.5% | 140.60 |
| THDC1800-36 | 18,000 | 14.3 | 46 | 27.4% | 144.3 |
| THDC2200-24 | 22,000 | 14.3 | 46 | 25.2% | 144.3 |
| THDC2200B-24 | 22,000 | 14.3 | 46 | 24.8% | 133.4 |
* Based on 24" load center.
** Add load length and clearance.
